The Evolution of F1 Pit Stops Through the Decades

If you watch a modern F1 race today, a pit stop can look almost unreal. In this article, we explore the evolution of F1 pit stops through the decades and how they became one of the fastest moments in motorsport.

Today, a car dives into the pit lane, stops on its marks, and in less time than it takes to blink twice, four tires are replaced!

Evolution of F1 pit stops

But pit stops were not always like this, for those who watched F1 for example during the 2000s, it was different.

However, in the early decades of F1, stopping in the pits was something drivers tried to avoid whenever possible!

It was slow, unpredictable, and often messy, and what we see today is the result of more than fifty years of gradual refinement, new technology, and changing regulations.

Pit stops In The 1970s: An emergency, not strategy

During the 1970s, pit stops were rarely part of race strategy, teams did not plan them like they do today. Instead, they happened only when something went wrong or when tires were completely worn out.

So a typical pitstop could take anywhere from 40 seconds to over a minute, and sometimes even longer.

Mechanics would lean over the car with heavy tools, removing wheels one by one while the driver waited, and there were no specialized crews for each wheel, no choreographed movement, and very little consistency between teams.

Some mechanics even worked with basic hand tools instead of pneumatic equipment.

The car was already full, fueling was usually done before the race, so teams focused mainly on keeping the car running rather than gaining time in the pits.

The idea that a pit stop could actually help win a race had not fully arrived.

INTERESTING NOTE: What caught my eye is the 1957 Nürburgring race. Fangio started with less fuel and planned a pit stop for tires and refueling. The stop turned into a nightmare when his crew lost a center-lock nut under the car, stretching the stop to over a minute, while a perfect stop was about 40 seconds. He rejoined 50 seconds behind the leader with 10 laps to go and proceeded to break the lap record almost every lap, driving one of the greatest races of his life to take the win, his last in F1.

The 1980s: The First Real Pit Stop Strategy

By the 1980s, F1 teams started realizing that pitstop could be more than emergency repairs, and one of the biggest changes was the introduction of air jacks and pneumatic wheel guns, which dramatically reduced the time required to lift the car and remove the wheels.

Mechanics began specializing in specific roles, with dedicated crew members assigned to each tire.

Pit stops dropped to roughly 20 to 30 seconds, which was still slow by modern standards but a massive improvement compared to the previous decade.

And this era also saw the first real strategic thinking around tires, and the teams began planning when to stop.

INTERESTING NOTE: What’s interesting is that the Brabham’s designer gordon Murray, introduced pressurized refuelling system in 1982, and the idea allowed cars to take on fuel much faster than traditional gravity fed methos, but that system raised safety concerns and was eventually banned in 1984, but even so the concept of pit strategy had begun to reshape F1.

The 1990s: Refueling Changes Everything

Pit stops became even more strategic in the 1990s when refueling returned to the sport in 1994.

Now teams had to balance fuel load, tire wear, and track position, meaning pit stops were no longer optional, but they were central to race strategy.

Cars often stopped multiple times during a race, depends on their strategy, and each stop involved both tire changes and refuelling, and because of strict flow limits and safety procedures, stops usually lasted between 7 and 12 seconds.

This continued into the 2000s, and only when cars had very little fuel to add could pit stops drop below six seconds, though that was extremely rare.

An interesting fact from 1994 is the introduction of pit lane speed limits. Previously, drivers could sometimes enter the pits at speeds up to 190 mph, but the limit was set to 80 mph, and on tight circuits like Monaco, it was further reduced to 60 mph.

The 2010 Revolution: No More Refueling

In 2010, F1 introduced one of the most important rule changes in pit stop history, refueling was banned.

The decision was made primarily for safety reasons, but it also simplified race procedures and reduced costs for teams, without fuel hoses and heavy refueling rigs, pit stops suddenly became much simplier.

And once fuel was removed from equation, the focus shifted entirely to tire changes.

This allowed teams to push pit stop speed to extraordinary levels, stops that once took ten seconds quickly fell to three seconds and sometimes less.

Interesting Fact: The 2010 Bahrain Grand Prix started unusually slowly. Fans who had watched F1 in the 2000s immediately noticed the pace drop in the first part of the race. Despite this, it was still an interesting contest. Comparing the results to 2009, the 2010 race finished almost 10 minutes slower, about 1 hour 39 minutes versus 1 hour 31 minutes in 2009, mainly because refueling had been banned.

Today: The Sub-Two-Second Pit Stop

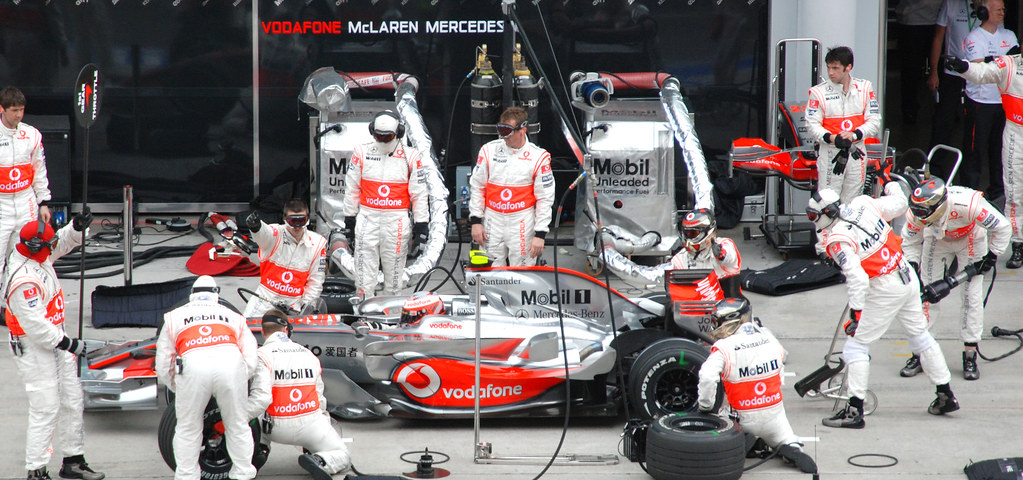

Modern F1 pit stops are often described as a high-speed ballet; around 20 crew members work together in perfect coordination, each tire has three mechanics responsible for removing the old wheel, fitting the new one.

These wheel guns are incredibly powerful, modern versions spin at roughly 9,000 RPM, tightening the single wheel nut in a fraction of a second, sensors inside the gun confirm when the nut is correctly secured.

Once all four wheels are fitted, the car is released instantly, and modern pit stops regularly fall below two seconds, something that would have been impossible just two decades ago.

Technical Note: The wheel guns now spin at around 9,000 RPM, using high-flow air to tighten a single nut in a fraction of a second. At the same time, carbon fiber “quick-release” jacks lift the car instantly and drop it the moment the last wheel is secured, making the whole operation a perfectly timed choreography.

FASTEST F1 PITSTOP: The current record stands at 1.80 seconds, achieved by McLaren during the 2023 Qatar GP, beating the previous benchmark of 1.82 seconds set by Red Bull Racing in 2019.

Safety Rules and Last words

Interestingly, the FIA actually stepped in to slow pit stops down slightly, in 2021, new rules introduced minimum reaction times for pit crews.

Mechanics must wait 0.15 seconds after securing a wheel before confirming it, and an additional 0.2-second delay is required before the green light can release the car.

So what began as slow, chaotic mechanical work in the 1970s has evolved into one of the most impressive spectacles in modern motorsport.

If you enjoyed our article, you can read more about F1 evolution on our website, or explore other interesting stories in our site’s categories.

FEATURED IMAGE CREDITS:
Jose Mª Izquierdo Galiot, Creative Commons Attribution 2.0 via FLICKR
